GramFlow®

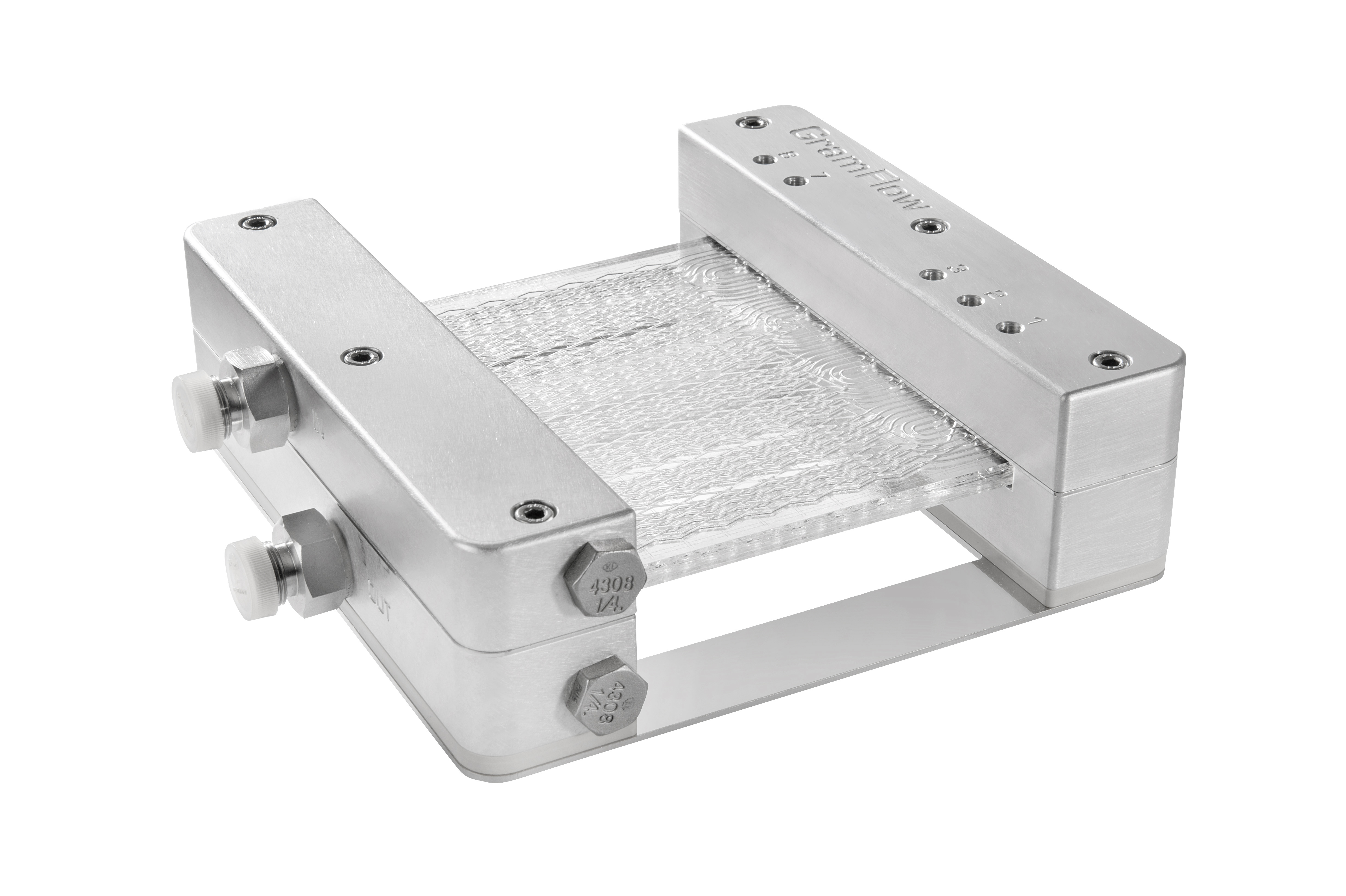

GramFlow is designed for the screening, optimisation & performance of A+B type reactions at the lab-scale.  Fabricated from borosilicate glass, the Flow Reactor has integrated heat exchange layers & pre-conditioning channels that allow mixing at the reaction temperature & thermal control of the reaction itself!

Employing standard 1/4-28 UNF process ports & M16x1 service connectors, GramFlow can be used with existing pumps & thermostats or supplied as a total system on request.

Examples of User applications:

• Process feasibility assessment
• Reaction screening & process optimisation
• Material supply for performance testing

Interested to see how other Customers use our systems?  See our Reference Cases

Want to know more? Use the buttons below to make your request!

SPECIFICATIONS

• Flow rate:  0.2-10 ml/min (up to 0.6 kg/h)
• Reactor volume:  1 ml
• Wetted materials:  Glass, PTFE & FFKM
• Dimensions:  126 (W) x 61 (D) x 46 mm (H)
